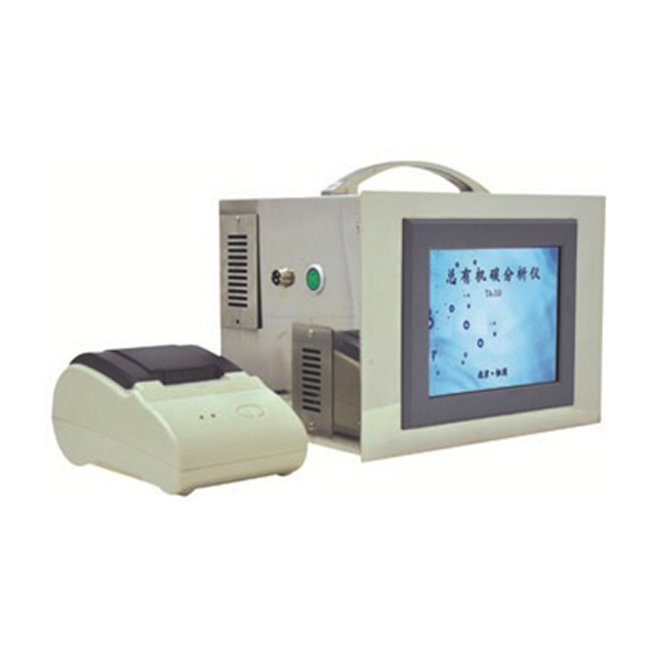

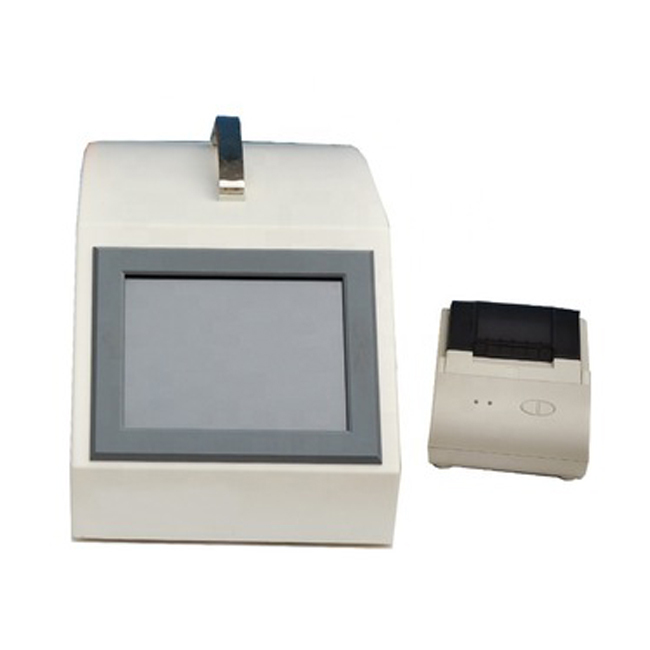

Total Organic Carbon (TOC) Analyzer

Item No.: LPMIE312
The product uses the electrical conductivity difference detection technology, adopting the principle of ultraviolet catalytic oxidation, with high accuracy and short response time.
  • ModelTOC
  • Capacity0.001mg/L – 1.000 mg/L
  • Dimension400X240X270mm
  • Description
    Description

    Introduction:


    The Total Organic Carbon (TOC) Analyzer is the high-precision total organic carbon analysis instrument. The product uses the electrical conductivity difference detection technology, adopting the principle of ultraviolet catalytic oxidation, with high accuracy and short response time. The instrument completely conforms to the requirements of the national pharmacopoeia, and it can meet the offline and online testing requirements for the deionized water such as pharmaceutical water (injection water and purified water) and ultrapure water.

    Application:

    On line monitoring and laboratory testing of pharmaceutical water (purified water, injection water), and cleaning validation, electronic industry, food industry, etc.


    Operation Principle:


    Oxidation organism by UV lamp and convert organic stuff into carbon dioxide, which detection adopted by direct conductivity method. The total organic carbon is the difference of the total carbon (TC)concentration in samples tested after oxidation and not oxidation of the sample total inorganic carbon(TIC), namely: TOC = TC- (TIC).



    Parameters:

    Measure range
    • 0.001mg/L – 1.000 mg/L
    11000ppb
    The conductivity test range
    • 0.055μs/cm-8.000μs/cm
    •
    Resolution
    • 0.001mg/L
    Response time
    • 5 mins
    Measuring limit
    • 0.001mg/L
    Accuracy
    • ≤ 3%
    repeatability error
    • ≤ 3%
    Zero drift
    • ≤±5
    The temperature of the sample
    • 1- 99 ℃
    Ambient temperature
    • 5-65℃
    Power
    • 220V AC/50HZ;120W
    Dimension
    • 400mm*240mm*270mm(length*width*height)
    Weight
    • 8.5kg
    Display screen Color touch screen
    Applied range Off-line in the laboratory, cleaning validation.
