Product Overview

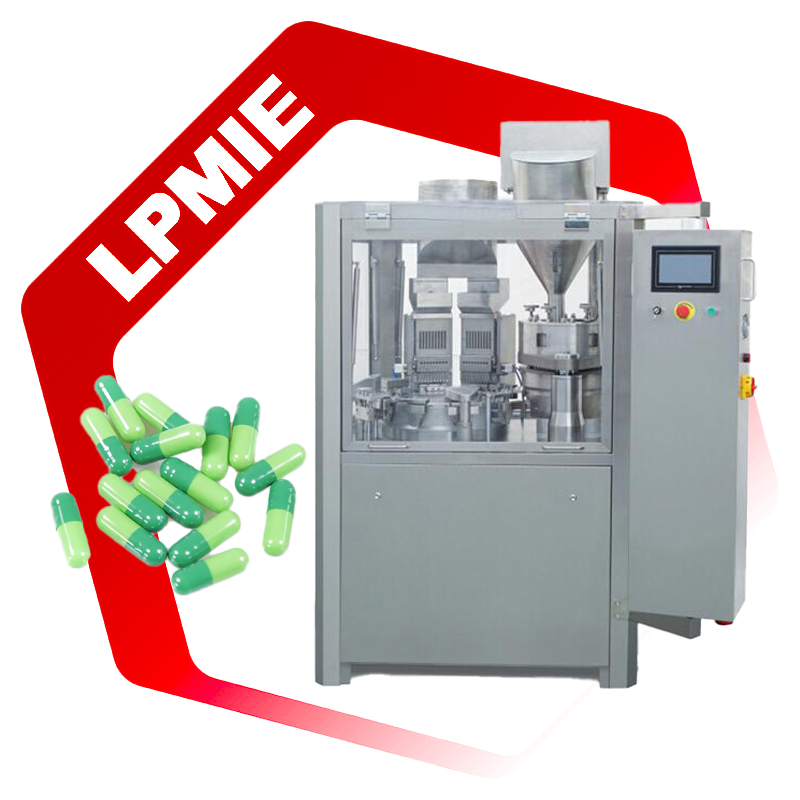

Name: NJP Fully Automatic Capsule Filling Machine
Brand: Liaoyang Pharma Machinery Co., Ltd.
SKU: LPMIE280
Availability: InStock
Rating: 5 (1 reviews)

This machine is designed based on the NJP-1200 automatic capsule filling machine, tailored for mass production. It can fill hard capsules with both traditional Chinese medicines and Western medicines, making it an ideal choice for hard capsule manufacturers.

Features & Benefits

- Control and Operation: Adopts PLC control and frequency-conversion stepless speed regulation, equipped with computer control and digital display for easy and intuitive operation; easy to install.
- Compliance: Fully complies with GMP requirements.
- Performance Upgrades:
  - Improved internal turret design, with direct import of Japanese linear bearings, ensuring higher machine precision and longer service life;
  - The workstation cam operates under good lubrication conditions, and the internal lubrication of the cam slot is maximized by adding a high-pressure atomizing oil pump, extending the service life of spare parts.
- Production Precision: Multi-bore dosing ensures high dosage precision (controlled at around ±3.5%); the capsule qualification rate exceeds 99%.
- Safety and Stability: Equipped with protective devices for operators and the machine, featuring automatic shutdown when material is insufficient, ensuring stable and safe operation.
- Additional Function: Added an external capsule control switch, making operation safer and faster.

Product Details

Product Parameters

Machine Model	NJP-1500	NJP-2000
Filling dosage	Powder,Pellet,Tablet	Powder,Pellet,Tablet
Capsule Size	Suitable for filling capsule size 00#-5# Supro/safefy capsule size:A-E	Suitable for filling capsule size 00#-5# Supro/safefy capsule size:A-E
Max. Output	90000 Capsules/H	120000 Capsules/H
Power Supply	380V 50Hz 6.45kw	380V 50Hz 6.45kw
Noise	<78dBA	<78dBA
Dimension	1100×1050×1970mm	1100×1050×1970mm
Capsule Feeding Rate	≥99.5％	≥99.5％
Dosing Precision	≤±3％ (Filling volume is >300mg, 40-80 particle filling after granulation)	≤±3％ (Filling volume is >300mg, 40-80 particle filling after granulation)
Compressed air	0.06m³/min 0.3Mpa	0.06m³/min 0.3Mpa
Water source	Water ring vacuum pump tank	Water ring vacuum pump tank
Vacuumize degree	-0.02～-0.06 MPa	-0.02～-0.06 MPa
Net weight	1300kg	1300kg

Product Application

Pharmaceutical industry: Used to fill powders, granules or liquids into hard or soft capsules for prescription, over-the-counter and nutraceuticals.
Nutritional supplement: Ideal for encapsulating vitamins, minerals, herbal powders and dietary supplements to meet consumer health needs.
Clinical trial: Supports small batch production of customized capsule formulations for research and development purposes.
Veterinary medicine: Produces capsules containing medications, nutritional supplements or dewormers for pets and livestock.
Electronic products: suitable for moisture-proof packaging of batteries, chips and other small electronic components.
Cosmetic industry: For encapsulating beauty supplements, collagen powders and other health products.

With its high efficiency and stable production capacity, the high-speed roller-plate blister packaging machine is especially suitable for mass production and the packaging needs of a variety of products.
