Product Overview

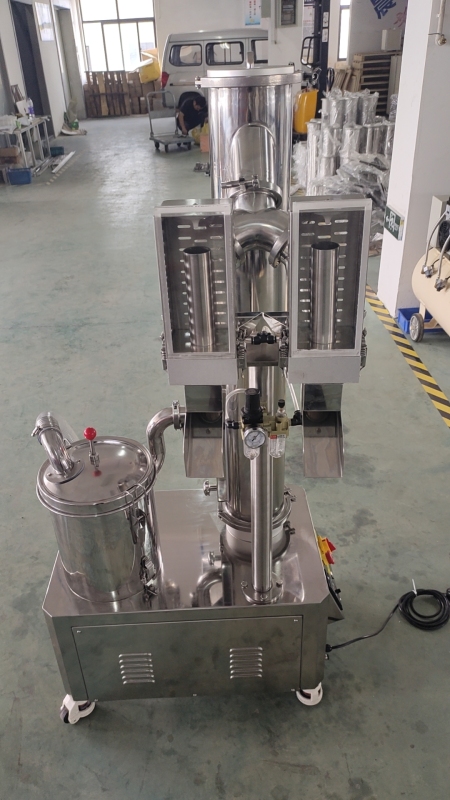

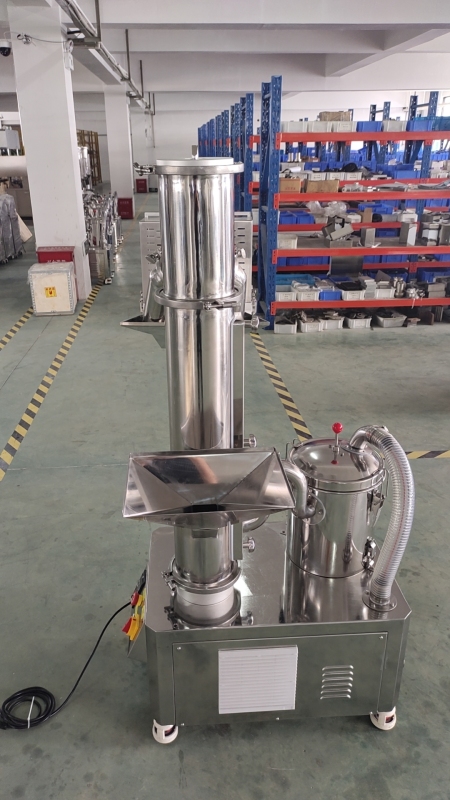

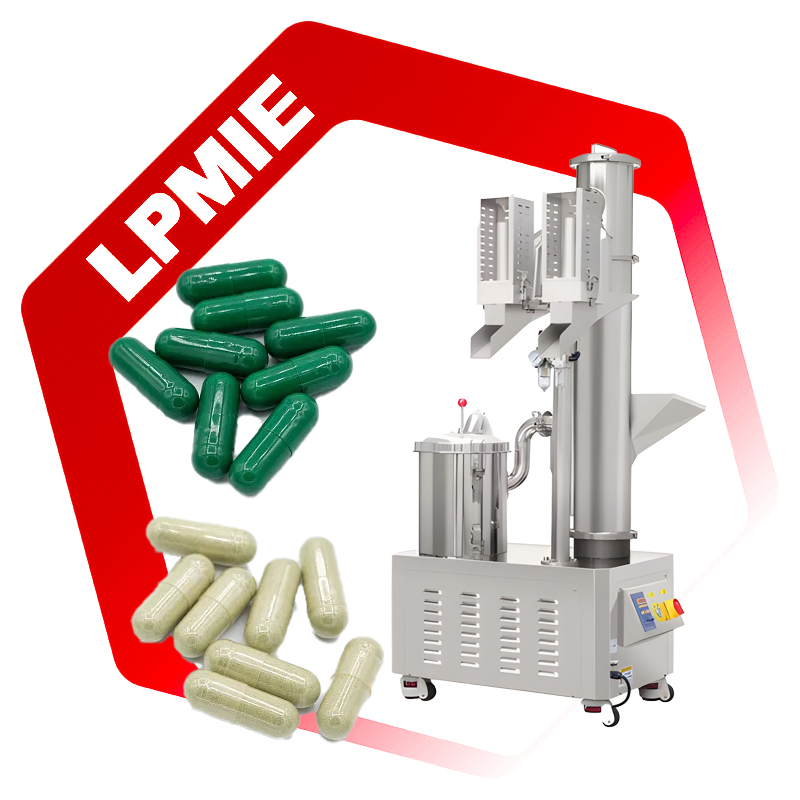

The Multi-Function Vertical Capsule Polishing Machine is compatible with capsule sizes 00#–4# and delivers a high production efficiency of 4000–7000 pcs/min.  Its vertical structure minimizes floor space while ensuring gentle handling of capsules, eliminating dust, static, and defective products through its integrated sorting mechanism.  Engineered for GMP-compliant environments, the system ensures clean, stable, and high-precision capsule processing.

Video presentation
https://youtube.com/shorts/Lpq3yYtZgEM?feature=share

Features & Benefits

1. 3-in-1 Integrated System

Capsule polishing, lifting, and sorting are combined into one compact machine, streamlining your production flow.

2. Fully Connectable to Upstream and Downstream Equipment

• Inlet connects to any capsule filler

• Outlet connects to:

  • Metal detector

  • Weight testing machine

  • Appearance inspection system

3. High Production Efficiency

• Output capacity: 4000–7000 capsules/min

• Ideal for medium and large-scale capsule production lines

4. Vertical Space-Saving Design

• Reduces footprint

• Gravity-assisted lifting reduces capsule damage

5. Polishing with Anti-Static Function

• Removes dust and powder coating

• Eliminates static electricity

• Enhances capsule surface brightness

6. Automatic Capsule Sorting

Automatically rejects:

• Empty capsules

• Broken capsules

• Lightweight or defective capsules

7. Easy Cleaning & Maintenance

• Stainless steel construction

• Tool-free disassembly

• Smooth internal surfaces prevent residue accumulation

8. GMP-Compliant Structure

All capsule-contact parts are made of food-grade stainless steel for pharmaceutical safety.

9. Low Power Consumption

• Power: 0.20 kW, 220V single phase

• Compressed air: 0.3 m³/min, 0.3 MPa

10. Strong Mobility and Stability

• Compact dimensions: 780×820×1550 mm
• Lightweight design (135 kg) with stable vertical operation

Product Parameters

Product Application

Pharmaceutical Manufacturing

• Hard gelatin capsules

• Vegetable capsules

• Powder-filled capsules

• Granule-filled capsules

• Pellet-filled capsules

Health Supplement Production

• Nutritional capsules

• Herbal capsules

• Probiotic capsules

Automated Capsule Processing Lines

• Capsule filling → polishing → sorting → metal detection → weight checking → packaging

R&D Laboratories & Pilot Plants

• Suitable for small batch or scale-up validation
