Product Overview

Name: Multi Functional Water Quality Detector | LPMIE
Brand: Liaoyang Pharma Machinery Co., Ltd.
SKU: 00407
Availability: InStock
Rating: 5 (1 reviews)

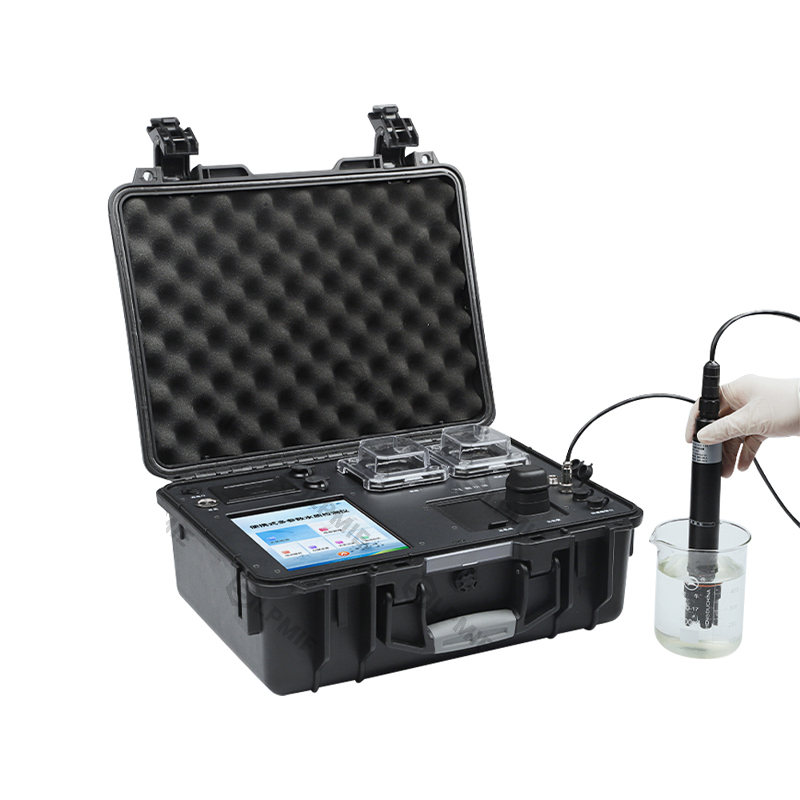

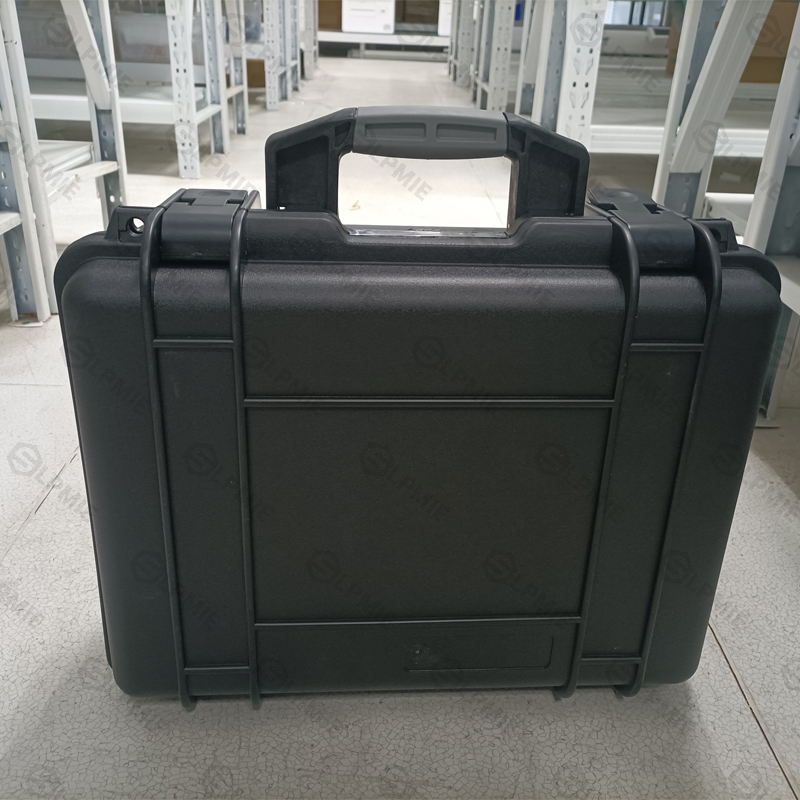

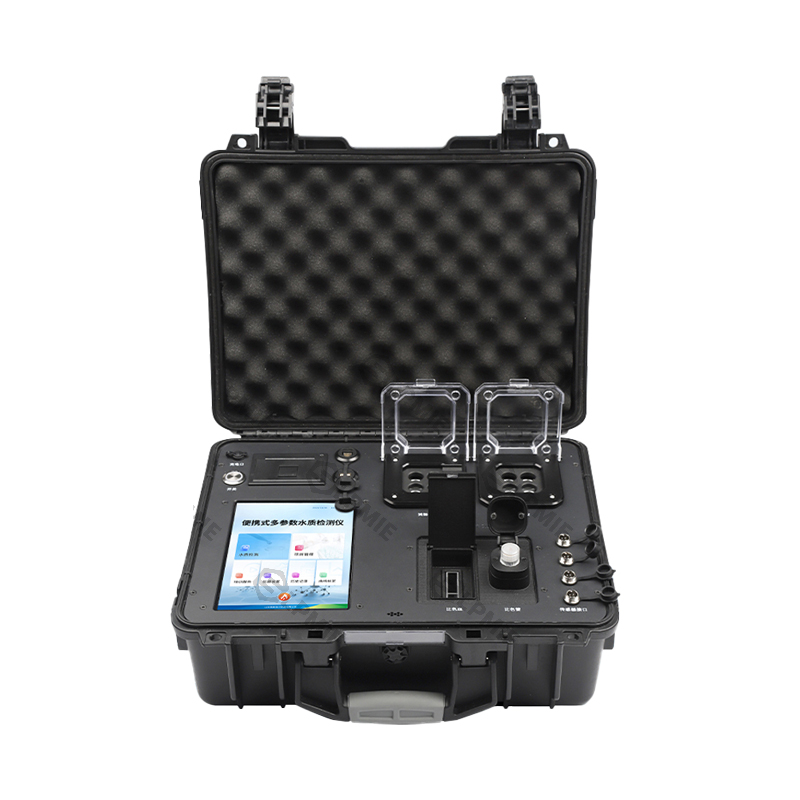

The portable integrated multi parameter water quality detector adopts a high-strength PVC engineering plastic carrying case design, with an integrated digestion and detection design. The digestion module has dual temperature zone function, and the detection part has both 360 ° rotating colorimetric tube detection and colorimetric dish detection. It is equipped with an Android intelligent operating system, an 8-inch high-definition LCD touch screen, fiber optic detection technology, imported light source, and built-in large capacity lithium battery. The portable multi parameter water quality detector has stable performance, accurate measurement, wide measurement range, powerful functions, and simple operation.

Product Details

Test Items

Spectral module detection indicators:

Conventional water quality testing indicators:

l COD, Ammonia nitrogen, total nitrogen, total phosphorus, phosphate, nitrate nitrogen, nitrite nitrogen, permanganate index, turbidity, chromaticity, suspended solids, dissolved oxygen pH；

Disinfectant testing indicators:

l Residual chlorine, total chlorine, chlorine dioxide, effective chlorine, chlorite;

Heavy metal detection indicators:

l Copper, total copper, hexavalent chromium, total chromium, zinc, total zinc, iron, total iron, nickel, total nickel, manganese, total manganese, cadmium, lead, aluminum, arsenic, tin, mercury/total mercury, cobalt;

Other testing indicators:

l Sulfate, fluoride, sulfide, cyanide, total cyanide, volatile phenols, aniline, formaldehyde, hydrogen peroxide, silica, urea, chloride ions, anionic surfactants, cyanuric acid, ozone, total hardness, total alkalinity.

Sensor module detection indicators:

l There are dozens of sensors including pH sensor, ORP sensor, dissolved oxygen sensor (fluorescence method), residual chlorine sensor (constant pressure method), conductivity sensor, salinity sensor, ozone sensor, turbidity sensor, hardness sensor, suspended solids sensor, sludge concentration sensor, COD sensor, ammonia nitrogen sensor, chlorophyll sensor, blue-green algaesensor, water oil sensor, CDOM colored soluble organic matter sensor, etc.

Product Parameters

Prefabricated colorimetric test tube	16 mm	Data transmission	USB、RJ45、WIFI
Colorimetric dish	Below 50 mm	Sensor interfaces	4, can be inserted and detected simultaneously, can be stored on schedule or manually
Operating system	Android intelligent operating system	Dissolving quantity	8, independently controlled by dual temperature zones
Screen display	8” high definition touch screen 1024*768 resolution	Heating speed	rise to 165 ℃ within 10 minutes
Indication error	≤ ±5%	Dissolving temperature	adjustable from room temperature to 200 ℃
Repeatability	< 0.5%	Dissolving capacity	0-10ml
Stability	< 0.5%	Temperature control mode	intelligent PID temperature control
Resolution	0.001	Temperature control accuracy	± 0.5 ℃
Optical stability	≤ ± 0.001Abs/20 minutes (100000 hours lifespan)	Preset resolution mode	COD, Total phosphorus, total nitrogen, permanganate, sulfate, formaldehyde
Automatic calibration	The instrument has an automatic calibration function	Custom resolution mode	4
Printing method	Micro thermal printer	Data storage	10 million sets, can be freely accessed and viewed
Operation videos	Demonstration videos of operation steps for ≥ 4 projects	Instrument power supply	DC48V2A
Upload function	Wireless networking is available to upload data to the cloud platform, which can be viewed in real-time on mobile phones and computers	Instrument size	430x350x200 mm
Battery capacity	Lithium battery 48V8AH	Instrument weight	11 Kg
Full charge usage time	Taking COD as an example, simultaneous digestion and detection can be used continuously for more than 6 hours

Product Application

Suitable for detecting various water quality pollutants in domestic sewage, industrial wastewater, groundwater, and surface water; Applied to water quality analysis in water quality testing laboratories, municipal, sewage treatment plants, environmental monitoring stations, educational research universities, power plants, disease control centers, paper and electroplating, aquaculture, biopharmaceuticals, petrochemicals, coal, metallurgy, textiles, food and other industries.
