Product Overview

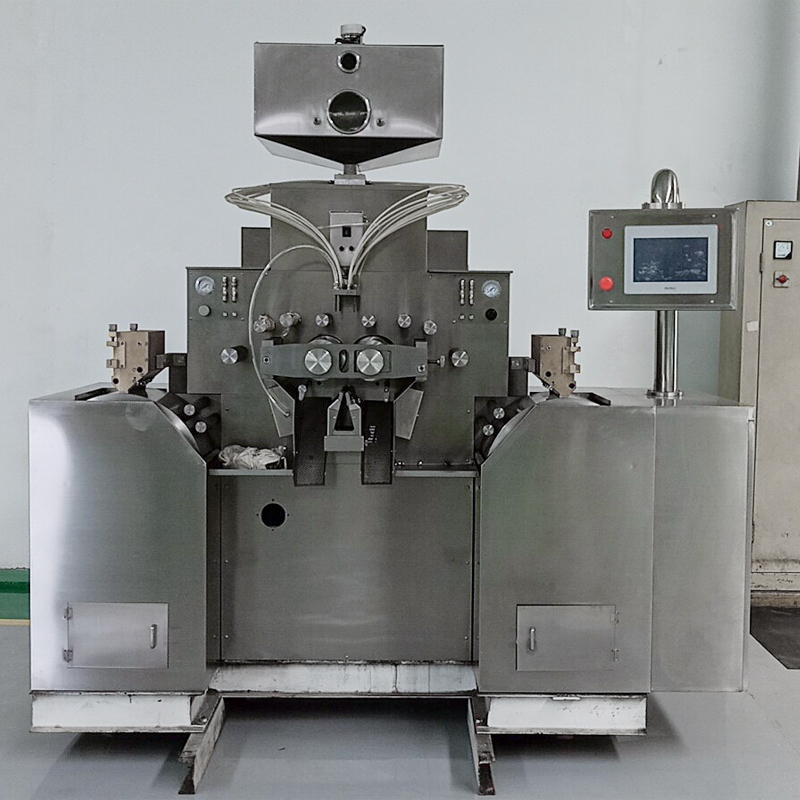

The LPR100 Automatic Micro Softgel Encapsulation Machine is a compact and efficient solution designed for laboratory-scale softgel production. Covering an area of only 1.5 m², this machine integrates the complete soft gelatin encapsulation process, from gelatin preparation to capsule drying. Its modular design includes a drying machine and a vacuum mixing bucket, making it ideal for research laboratories, universities, and small-scale production facilities.

Features & Benefits

LPR100 Softgel Encapsulation Machine

• Compact structure – occupies only 1.5 m², easy to move and install.

• Rolling die system – precision design ensures accurate and stable encapsulation.

• Variable roll-mode speed – adjustable from 0 to 4 rpm.

• Flexible filling volume – 0–1.5 mL per capsule, suitable for micro softgels.

• Durable construction – stainless steel build meets GMP standards.

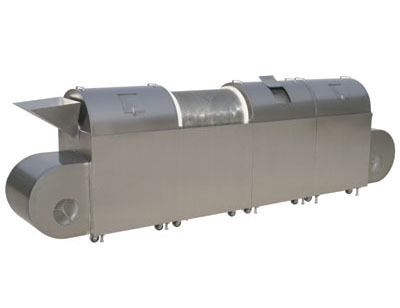

Drying Machine

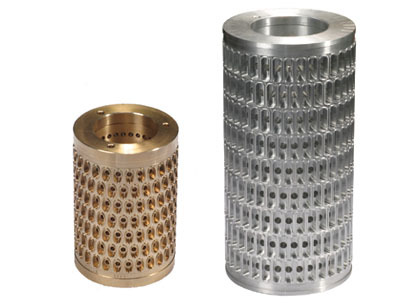

• Equipped with a transfer cage and typhoon system for uniform drying.

• Forward rotation for drying, reverse rotation for capsule discharge.

• Suitable not only for softgels, but also for drying medicines, food, and chemical granules.

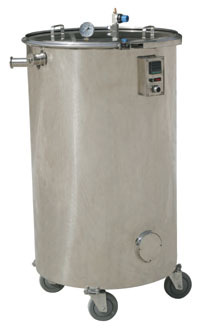

Vacuum Mixing Bucket

• Three-layer structure with water-bath heating and high-efficiency insulation.

• Maintains stable temperatures from +23℃ to +95℃.

• Supports both positive and negative pressure operations.

• Smooth and uniform mixing with low-noise performance.

• Especially suitable for gelatin sol preparation in small-scale soft capsule production.

Product Parameters

	Model	Vacuum mixing bucket
	Effective volume of barrel	35L
	Effective volume of water jacket	20L
	Heating power	1.5kW AC220V / 50Hz
	Mixing power	90W AC220V / 50Hz
	Stirring speed	21.6r/min
	Working temperature	+23~+95℃
	Permissible barrel pressure	-0.09MPa(vacuum)~+0.06MPa
	Total weight	~56kg
	Dimensions	480*900mm

Product Application

The LPR100 Softgel Encapsulation Machine is widely used in:

  •  Pharmaceuticals – production of small-batch softgel medicines, vitamins, and dietary supplements.

  •  Nutraceuticals – encapsulation of fish oil, herbal extracts, and functional ingredients.

  •  Food Industry – softgel candy and food additives.

  •  Cosmetics – encapsulated oils, essences, and skincare formulations.

  •  Research & Development – laboratory experiments, pilot trials, and educational purposes.

FAQ

Q1: What is the production capacity of the LPR100 machine?
A1: It is designed for small-batch and laboratory-scale production, ideal for R&D and pilot testing.

Q2: Can this machine encapsulate both oil-based and water-based fills?
A2: Yes, it supports various formulations including oils, herbal extracts, and suspensions.

Q3: Is the machine GMP compliant?
A3: Yes, all stainless-steel construction meets GMP standards.

Q4: How is the drying process managed?
A4: The drying machine uses a transfer cage system for efficient and uniform drying of softgels.

Q5: Is training or installation support available?
A5: Yes, technical support and operation training are available upon request.
