High viscosity stainless steel ceramic three-roll grinder for paste slurry cream grinding milling

Description

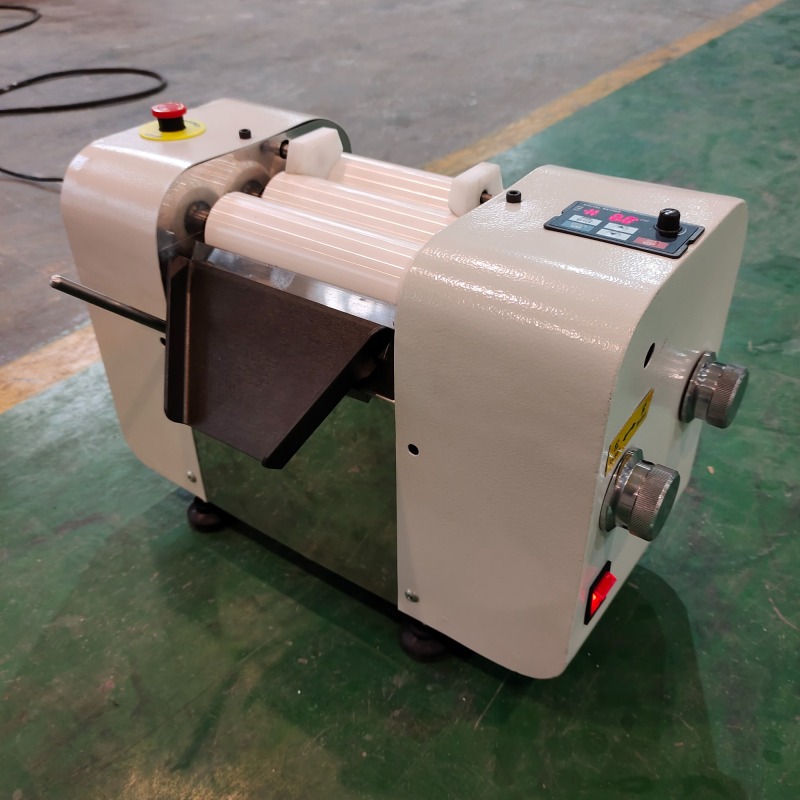

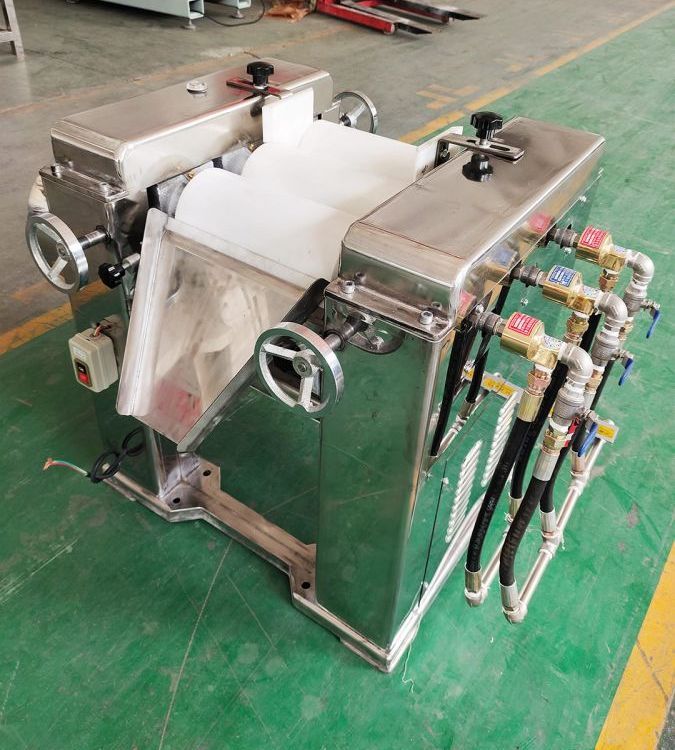

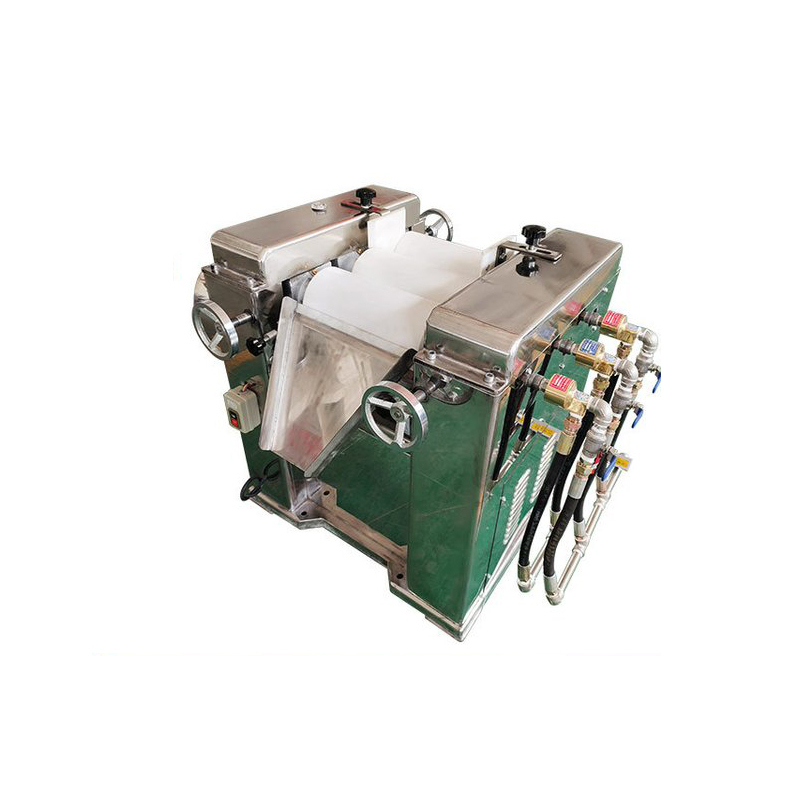

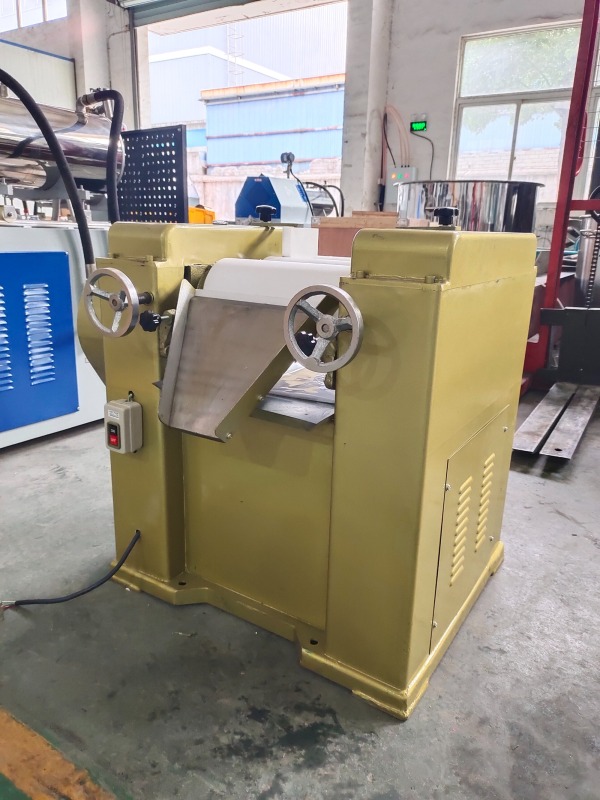

Stainless Steel/Ceramic Three Roll Milling Machine

Product Introduction:

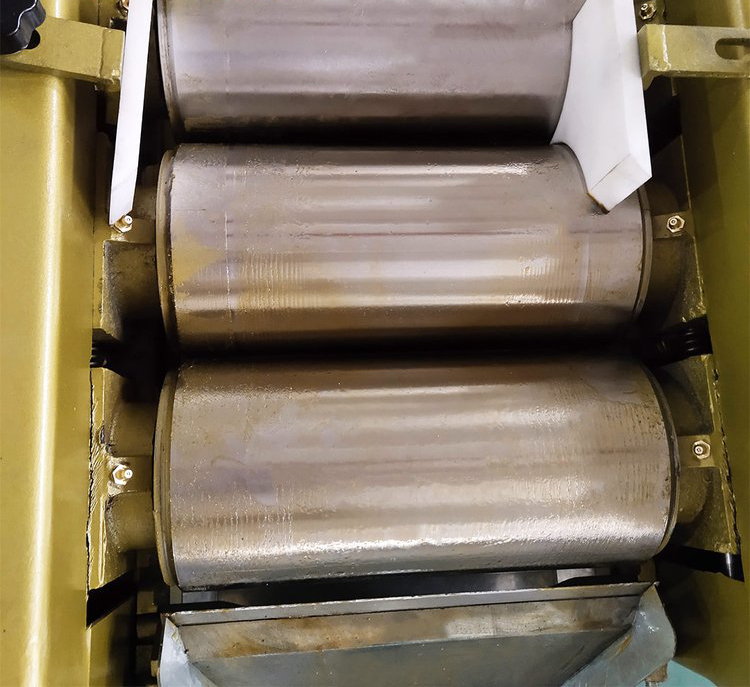

The three roller grinder is mainly used for refining high viscosity materials in various industries such as paint, ink, pigments, plastics, etc. Especially suitable for processing products with high viscosity and fine particle size requirements, it is currently one of the equipment with high grinding fineness in wet grinding equipment. The surfaces of the three rollers are squeezed against each other and the friction caused by different rotational speeds causes strong shear forces on adjacent rollers, forcing the material to be fully dispersed and ground.

Product advantages:
1. Good fineness achievable by grinding;
2. Manually adjust the roller clearance, with a simple and reliable mechanism;
3. Suitable for processing high viscosity materials;
4. Adjustable drum clearance

Operational principle:
When working, adjust the fast and slow rollers to the appropriate position, start the machine, and then add the slurry to be ground to the copper knife between the middle and slow rollers
After the slurry is ground on the surface of the medium and slow rollers, it is brought to the fast roller by the medium roller, and then scraped off by the discharge scraper that is close to the surface
The blade with a baffle flows into the material container, forming the entire grinding process.

Application area :
The three roller grinding machine is mainly used for various paste like pastes such as paints, inks, pigments, plastics, food, etc., mainly for paints, inks, etc
The main equipment for grinding and dispersing high viscosity materials.

Parameter:

Model	Power(Kw)	Roller Diameter(mm)	Roller Length(mm)	Slow Roller(rpm)	Middle Roller(rpm)	Fast Roller(rpm)	Weight
LPSG-65	0.75	65	125	26	70	145	85
LPSG-100	1.5	100	120	40	86	186	200
LPSG-120	1.5	120	280	26	70	186	450
LPSG-150	2.2	150	300	28	66	152	600
LPSG-260	7.5	260	675	22	64	182	2200
