Description

Introduction:

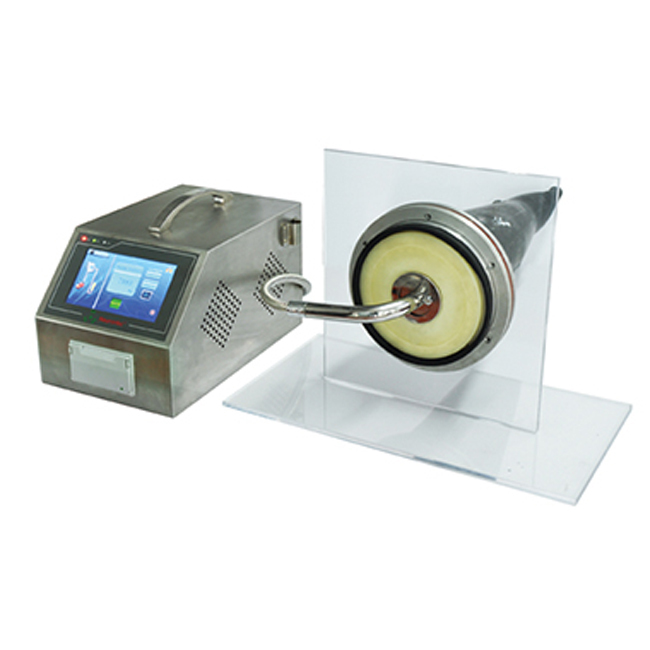

The on-line gloves Integrity Tester is designed according to the positive pressure leak detector principle proposed by GB/T 25915.7-2010/ISO 14644-7:2004, and it is a dedicated instrument to detect the gloves leakage. The simple and easy design won't need any additional equipment, no need to remove the gloves, with fast detection speed and high precision.

Features:

1. The instrument adopts a small amount of frequent air inlet mode, with uniform inlet velocity in gloves, to avoid gloves deformation.
2. It is equipped with color touch screen and humanized interface design, according to different test parameters, for automatic selection and matching, which can be most adaptive to the current gloves test procedure, date and time display;
3. The authority management and electronic signature design is in line with the 21 CFR part 11 for certification requirements of electronic records and electronic signature;
4. It is convenient to move, easy to carry and quick to connect;
5. Historical records can be used for print, storage and query.

Parameters:

Working power supply	AC 220V 50Hz
Rated power	120W
Testing duration	2-8min
Pressure range	500-5000Pa
Response value	≤ 50Pa
Noise	≤ 50dB(A)
Working mode	Continuous work
External gas source	Compressed air, nitrogen, inert gas
Sealing pressure	≤ 0.8Mpa
other function	Audit trail ,data export by USB (customization)
Historical record	10000 groups
Print Function	Built-in Printer
Overall dimensions	400260270*250mm
Weight	7.5KG
On-line gloves tray	Custom-made
Audit trail storage(customization)	≥ 5 years
