Description

Main Features

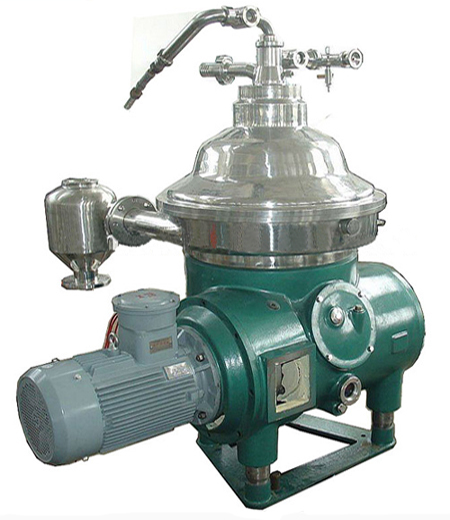

GFHY Series Oil Separator is mainly working for many kinds of oil separating, especially for liquid-liquid-solid separation.All the processing could be working continuously discharge automatically.Matched with Ex Electric control cabinet,most of the electric component are flameproof parts,SIEMENS touch screen and transducer keep the separator starting from low speed,reach the maximum working speed gradually,protect the EX-motor working for long time. Bowl part material consult with Alfa Laval bowl material,main core part all used 00Cr18Ni5Mo,other parts use SUS304,good performance and easy for maintenance,this machine is in accordance with pharmaceutical and food manufacture standard.

Structure & Principle

The bowl rotates at a high speed round the main axis,driven by a motor through hydraulic coupling and screw gear pair.Stock liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. by the action of centrifugal force field,heavy liquid flows along the inner wall of discs to the inner wall of the bowl, after up flowing along them,it will be discharged by the heavy liquid pump,the light liquid will be done by the light liquid pump,which flows along the inner wall of discs into centre pipe and then up to high liquid outlet. the larger solid phase particles left will sedimentation on the bowl's wall and then will be discharged, controlled by the sliding bowl,out of the sediment outlet.

Technical Parameters

Item Model Type		GFHY170	GFHY200	GFHY 300	GFHY 500
Bowl Part	Diameter(mm)	230	270	380	580
Bowl Part	Speed(r/min)	7546	7320	7080	6600
Working Capacity (m³/h)		0.2~0.5	0.3~0.7	0.8~1.5	3.0~6.5
Motor’s power (kw)		1.5Kw 380V 50HZ3 Phase EX.	4.0Kw 380V 50HZ3 Phase EX.	7.5Kw 380V 50HZ 3 Phase EX.	18.5Kw 380V 50HZ 3 Phase EX.
Dimension (mm)		700×550×800	950 x950x1250	1450x1400x1500	1800x1500x1855
weight (kg)		120	550	810	2250
