Product Overview

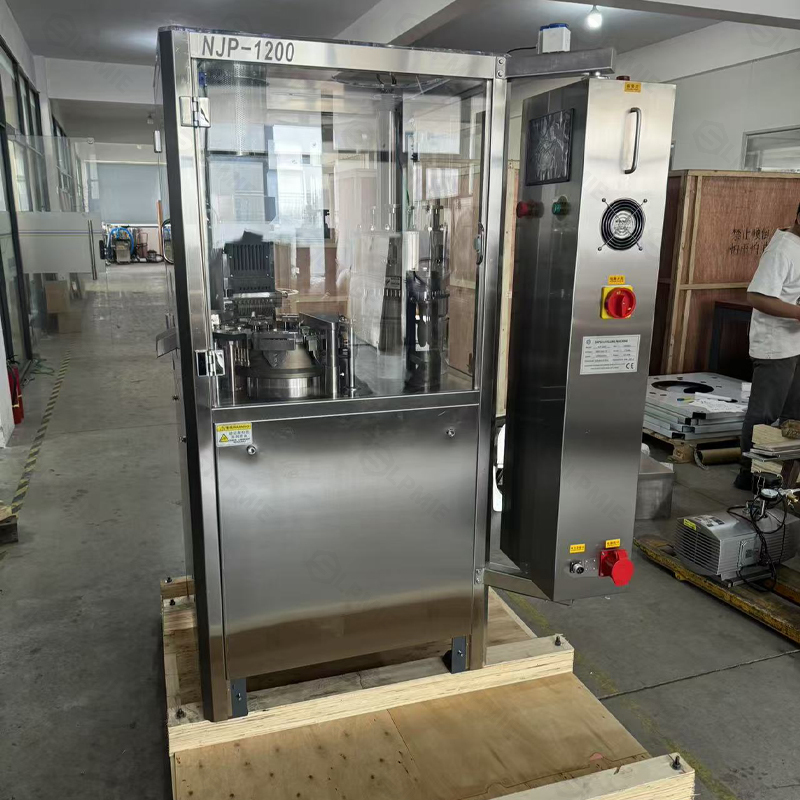

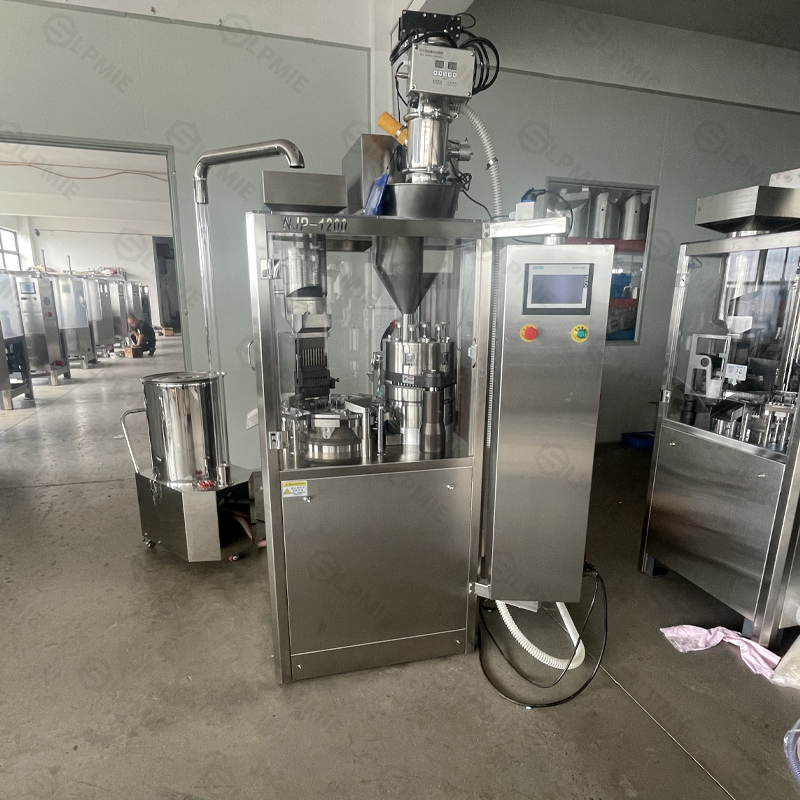

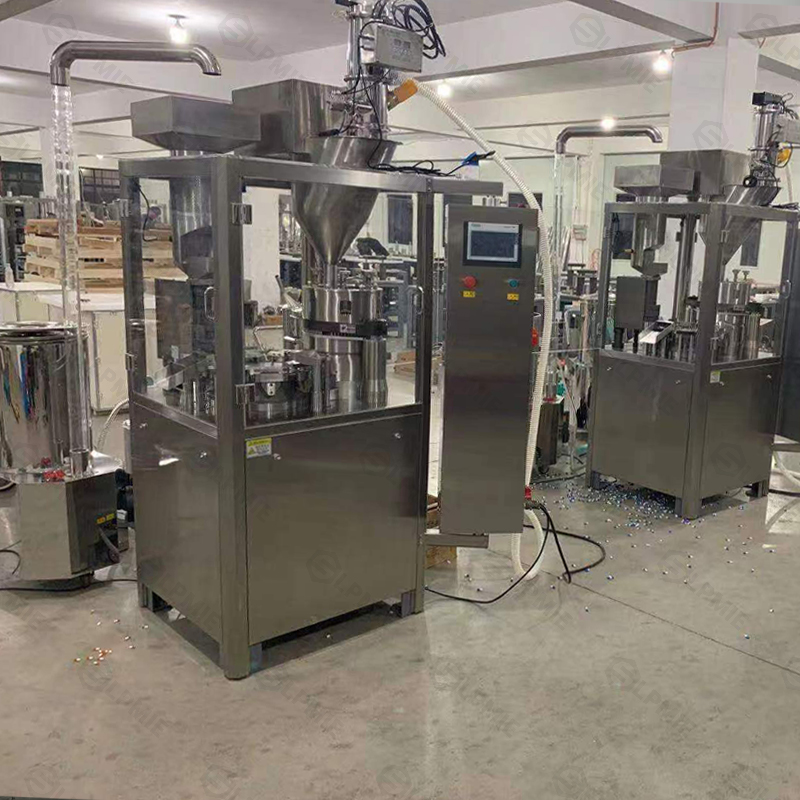

Our Automatic Capsule Filling Machine is designed for precision, efficiency, and reliability in pharmaceutical and health supplement industries. It adopts an intermittent motion and hole plate-type structure, capable of filling capsule sizes from 00# to 4# with a dosage accuracy of ±3.5% and a capsule qualification rate of over 99%. Engineered to meet GMP standards, this machine handles capsule feeding, separating, powder filling, locking, and discharge in a fully automated cycle.

Enhanced with Japanese linear bearings, optimized turret design, and advanced lubrication systems, it ensures longer lifespan, smoother operation, and minimal maintenance. The compact structure, low noise, and safety features make it a top choice for professional capsule manufacturers.

Video presentation

Features & Benefits

• Multi-Function Automation: Complete capsule process — feed, fill, lock, eject, and clean.

• High Precision Filling: ±3.5% dosage control with multi-bore dosing system.

• Low Noise Operation: Compact structure with stable, quiet performance.

• Self-Protecting System: Auto pause on material shortage; safety guard for operators.

• Durable Structure: Japanese bearings, enhanced turret for long-term use.

• Wide Application: Suitable for both Western powders and TCM (Traditional Chinese Medicine).

• GMP & CE Compliant: Designed to meet strict pharma industry standards.

Product Details

Product Parameters

Product Application

Pharmaceutical Industry: Capsules with prescription powders or granules.

TCM Manufacturers: Capsules filled with herbal blends or extracts.

Health Supplements: Nutraceuticals, vitamins, dietary powders.

Research Labs & Pilot Plants: Small batch capsule production and trials.

Clinical & Hospital Use: Filling precision medicine capsules on-demand.


FAQ

Q1: What capsule sizes does this machine support?
A1: It supports hard gelatin capsules of sizes 00#, 0#, 1#, 2#, 3#, and 4#.

Q2: What’s the filling accuracy?
A2: The dosage precision is around ±3.5%, thanks to the multi-bore dosing system.

Q3: Can this machine fill both Chinese and Western medicine?
A3: Yes, it is specifically designed to handle both types of powder and granules.

Q4: Is the machine GMP compliant?
A4: Yes, it meets GMP standards and is suitable for pharmaceutical production.

Q5: How does it ensure safety during operation?
A5: It has protective guards, automatic pause when material runs out, and safe lubrication systems.

Q6: Are auxiliary machines available?

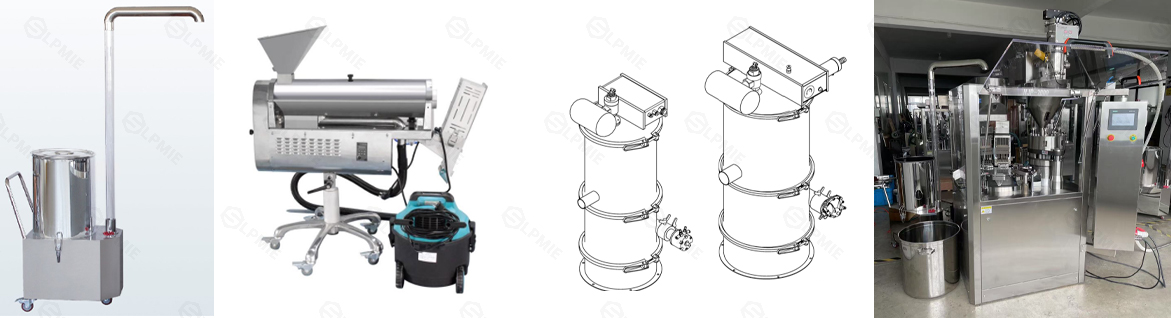

A6: Yes, we provide optional machines like capsule feeding, powder feeding, polishing and sorting machines.
