In modern industrial and laboratory environments, precise material handling is critical for ensuring product quality and operational efficiency. As technology evolves, manual methods of sorting and counting are being replaced by high‑speed, accurate automated systems. The Fully Automatic Sample Divider and Seed Counter is one such innovation—reshaping how granular materials are sorted and measured.

What is Fully Automatic Sample Divider & Seed Counter?

This device is designed for fast, accurate counting and sample division of tiny particles. Ideal for agricultural seeds—such as corn, rice, wheat, soybean, sesame, and vegetable seeds—as well as micro components like pearls, pills, and capsules. Beyond counting, it offers automatic sample loading, programmable distribution into preset cups, weighing, and integrated data reporting.

Key automated features include:

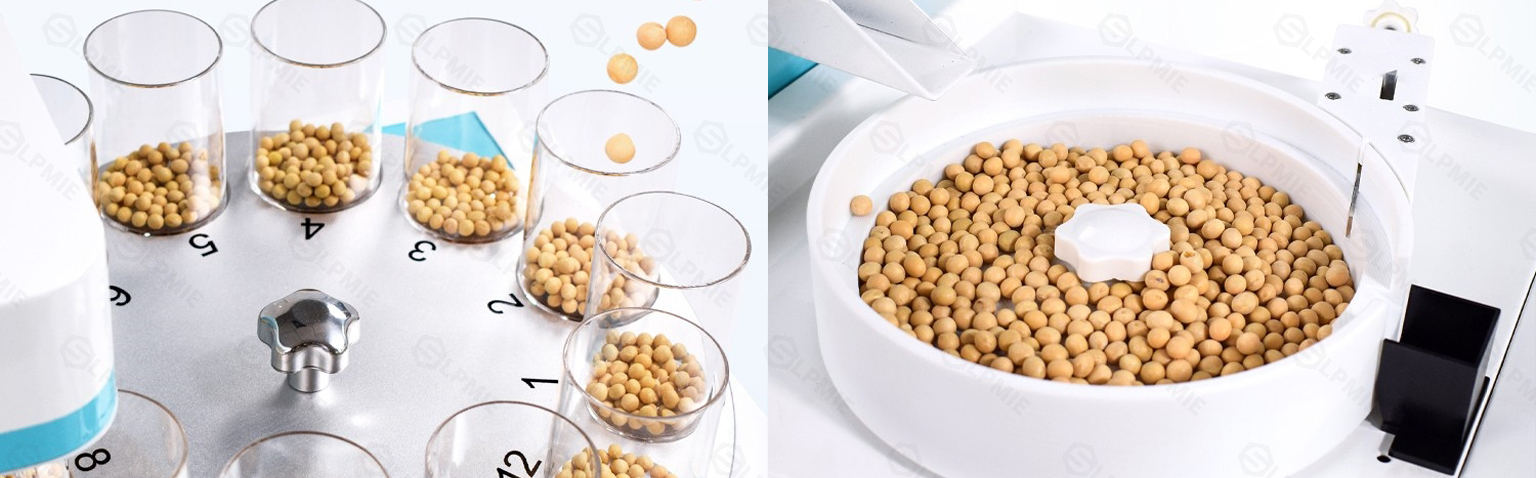

• Multi‑cup rotating turntable (usually 12 cups)

• Intelligent slow‑down before cup fill completion

• Automatic stop when preset count reached

• Auto‑weighing and calculation of thousand‑seed weight

• History data record, printing, and export via USB

• High-resolution user control with 7" or optional 10.1" touchscreen

How It Works?

1. User pours the sample into the feed hopper.
2. Material is automatically vibrated and fed into the counting chamber.
3. Optical sensors scan each particle; a processor analyzes individual objects by size, shape, and other parameters.
4. Grains are distributed into cups sequentially on a rotating system.
5. The turntable slows before each cup is filled, reducing inertial overshoot and improving precision.
6. Once preset counts are reached, the system stops, weighs each cup, calculates thousand‑grain weight, and prints or records the data.

Full automation requires no manual intervention during counting, delivering consistent and reliable results for research, quality control, breeding, and industrial production.

Main Technical Parameters

• Seed length range: 0.5–23 mm

• Counting rate: up to 1000–2000 grains/min (dependent on shape & size)

• Counting error: ±0.2%

• Number of cups: 12 (Ø60×H80 mm each)

• Programmable speed & sensitivity levels

• Auto‑weighing with calculation of 1000‑grain weight

• Structure: stainless steel, modular

• Power: AC 220 V ±10%, 50/60 Hz

• Noise level: ≤80 dB

• Continuous operation: ≥8 hours

• Environment: –10 °C to 50 °C, humidity <85%

Why It Matters?

• Boosts throughput while reducing human error
• Enhanced data reliability for research and QC
• Customizable and modular for various particle types
• Real‑time alerts (audio alarms) and data tracking
• Fully compliant with lab and industrial standards
